BC40046(Satin Chrome) & BC40113(Matte Black) Lever Grade 2 HD Keyed Storeroom

The Brinks Commercial Heavy-Duty Storeroom Lever is designed for entry doors or doorways where added security is needed. The deadlocking latch bolt is operated by the inside the lever at all times. A key is used to retract the latch bolt and open the outside. When the key is removed, the outside will lock. The inside lever is unable to lock or unlock the outside lever. A 5-Pin SC1 cylinder and brass plug provide added security and peace of mind. Equipped with tubular chassis for easier installation, the keyed entry lever will fit wood or metal doors 1-3/8" to 2" thick. The Heavy-Duty Classroom Lever features 4-5/8" solid zinc diecast levers, an ANSI Grade 2 rating that's tested to exceed 500,000 cycles, a 3-hour fire rating (UL Listed), and is ADA compliant for commercial or residential use. A T-strike, 4-7/8" ASA strike, 2 keys, mounting hardware, and installation instructions are included.

• Storeroom function allows for operation of latch bolt with use of a key. Key is required for entry at all times. Key cannot be removed when unlocked

Construction

• Equipped with 4-1/2"solid zinc diecast levers
• Sleek satin chrome finish
• Heavy duty cylindrical construction
• Packaged with 4-7/8" ASA ANSI strike and T-strike

Durability

• ANSI Grade 2: Tested to exceed 500,000 cycles
• UL Listed: 3 Hour fire rated for added protection and meeting building requirements
• ADA Compliant: Meets ADA requirements, ensuring accessibility to all disabled persons
• Included 6-Pin SC4 Cylinder, brass plug and 2 keys for added security and peace of mind
• Full lifetime warranty

Installation

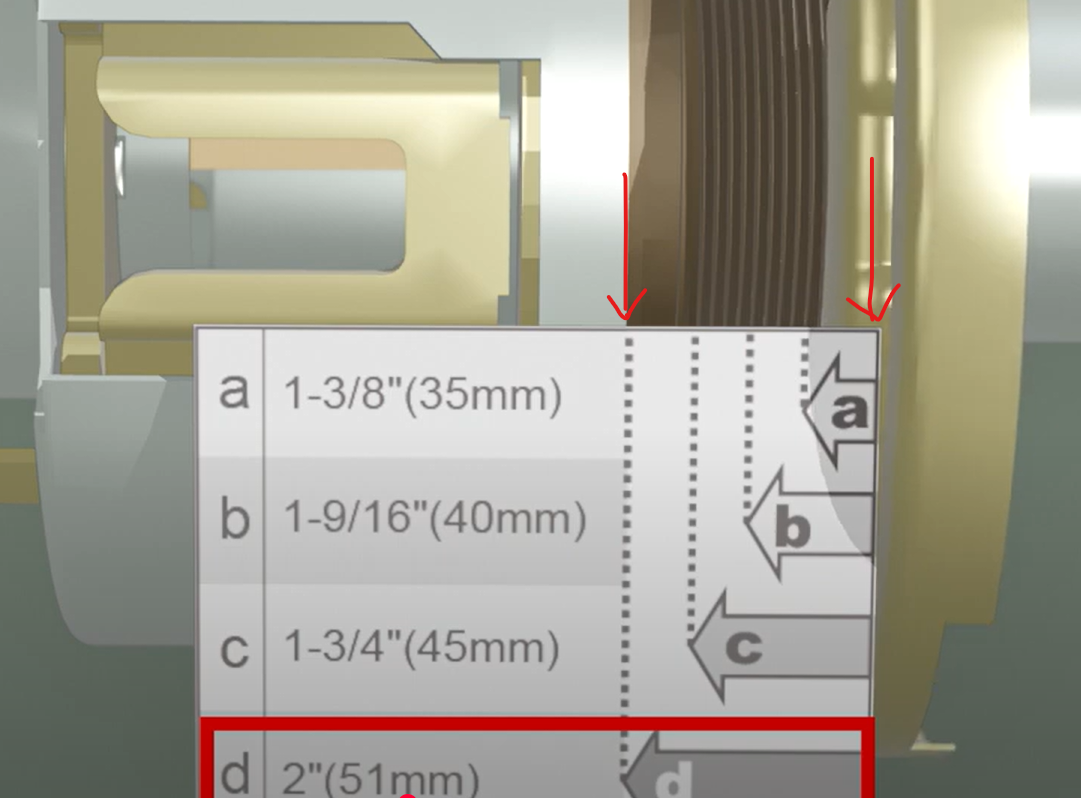

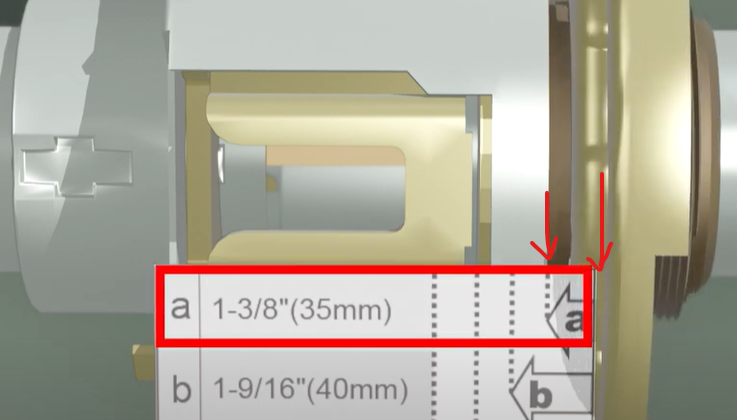

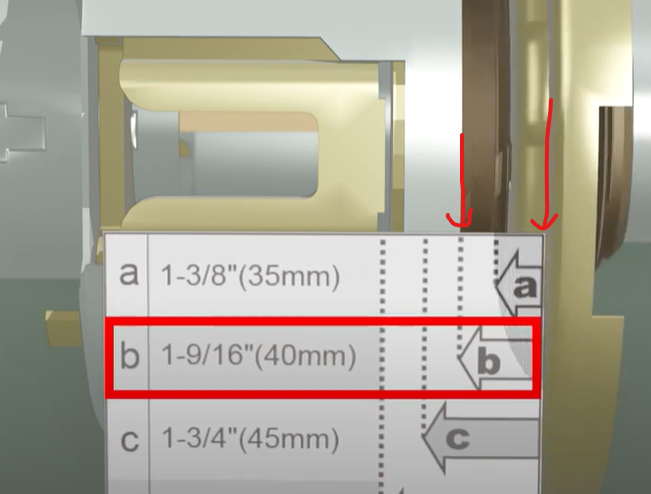

• Door Type: Wood or Metal doors 1-3/8"-2" thick
• Non-Handed: Can be applied to left or right-handed doors
• Included hardware: Mounting screws, 2 keys and installation instructions
• Fixed cylindrical 2-3/4" backset latch included

Replacement Parts:

922-00234 Latch 60mm(2-3/8") Cylindrical Entry SC

922-00236 Latch 60mm(2-3/8") Cylindrical Entry MB

901-00082 Screw Pack G2 HD Levers SC

901-00084 Screw Pack G2 HD Levers MB
